ES51 High Voltage power supply
Product Overview

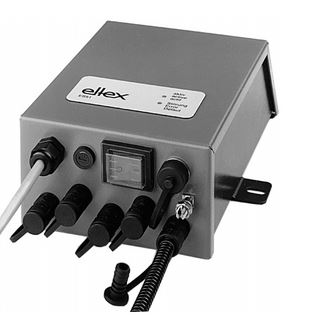

The ES51 high voltage power supplies are power supply units for the series R5X AC discharge bars.
The discharge bars and the ES51 power supply are used mainly in cases where disruptive static charges on fast-moving material webs impair production processes and need to be eliminated.
The ES51 power supply features the following characteristics:
- 5 plug-type high voltage outputs
- stable 5 kV AC output voltage
- small dimensions
- easy installation
- protection class IP 54 design
- function and pollution monitoring of the bars with floating signal contacts (optional)
Specifications
Supply voltage |
230 V AC 50/60 Hz; 115 V AC 60 Hz; |
| Power Input |
80 VA maximum |
| Output Voltage |
5 kV AC; ES51/K: 3.5 kV AC |
| Loading capacity |
depending on length of bar and length of high voltage cable |
| Output current |
max. 6.2 mA at 5 kV |
| Operating amb. temperature |
ES51: 0...+60°C (+32...+140°F); ES51US: 0...+40°C (+32...+104°F) |
| Storage temperature |
–20...+80°C (–4...+176°F) |
Ambient humidity |
max. 80% r.h., non-dewing |
| Function and Malfunction signals (optional) |
2 floating contacts, max. 250 V AC/1 A or 24 V DC/0.5 A loading capacity
green (high voltage active) or red (malfunction) LED in front |
| Mains power cable |
approx. 2.5 meters with earthing-pin plug, national version |
| Fuse (primary circuit) |
see name plate |
| Ground link |
grounding terminal on housing |
| High voltage connections |
5x, plug-type |
| Enclosure |
sheet metal steel with wall bracket |
| Protection class |
IP 54, EN 60529 |
| Dimensions |
230 x 140 x 82 mm (H x W x D) (see Fig.) |
| Weight |
approx. 4 kg |
| UL approval |
File No. E227156 |
