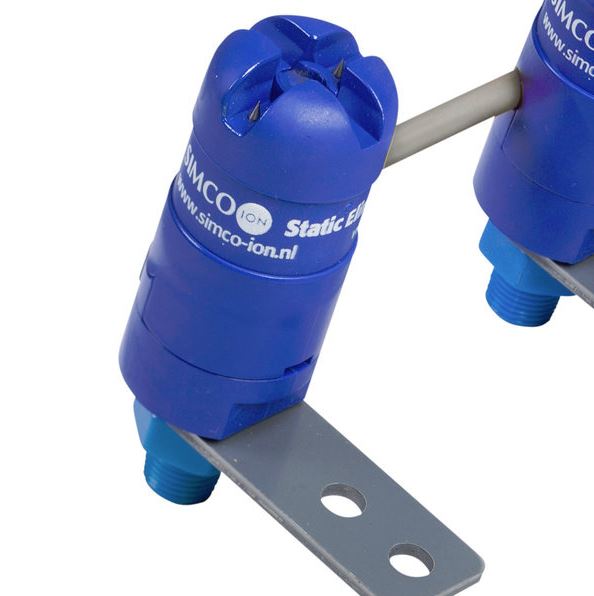

HE Static Control Nozzle

Product Overview

HE Static Control Nozzles are a current-limited pinpoint ionizing air source, which ensures operator and equipment safety. By limiting current at the nozzle tip, the HE can be used where contact by personnel is likely. HE nozzles can be mounted individually, in series, or on an air header bar. They operate on compressed air or nitrogen and produce a high-velocity stream of static eliminating air for cleaning and static control. Ideal for preventing double pickup at the feed pile on sheet-fed presses.

Specifications

Line Voltage Requirements 120 V, 60 Hz, 230 V, 50 Hz
Size(Individual Nozzle) 2 1/32 inches long by 15/16 inches diameter
Maximum Air Pressure(clean, dry air) 100 psi maximum
Air Flow (at 30 psi) 2.8 SCFM
Air Supply Connection 1/8 inch NPT on nozzle
Working Distance from substrate Up to 6 inches
Operating Temperature Limit 150° F (66° C)
Static Charge Discharge Time 0.5 seconds at 6 inches at 30 psi (5000 V to 500 V)
Part Numbers:
Individual Nozzles
HE Nozzle - Thru 4002370
HE Nozzle - End - 10 ft cable 4002371
HE Nozzle - End - 20 ft cable 4002372
HE Nozzle - End - 30 ft cable 4002373
HE Nozzles - Complete Assembly On Header:
2" centers - Thru 4103597
3" centers - Thru 4103598
4" centers - Thru 4103599
5" centers - Thru 4103600
6" centers - Thru 4103601
7" centers - Thru 4103602
HE Nozzle - End 4103629





Downloads

  Product Brochure

Manufacturer

Simco-Ion
